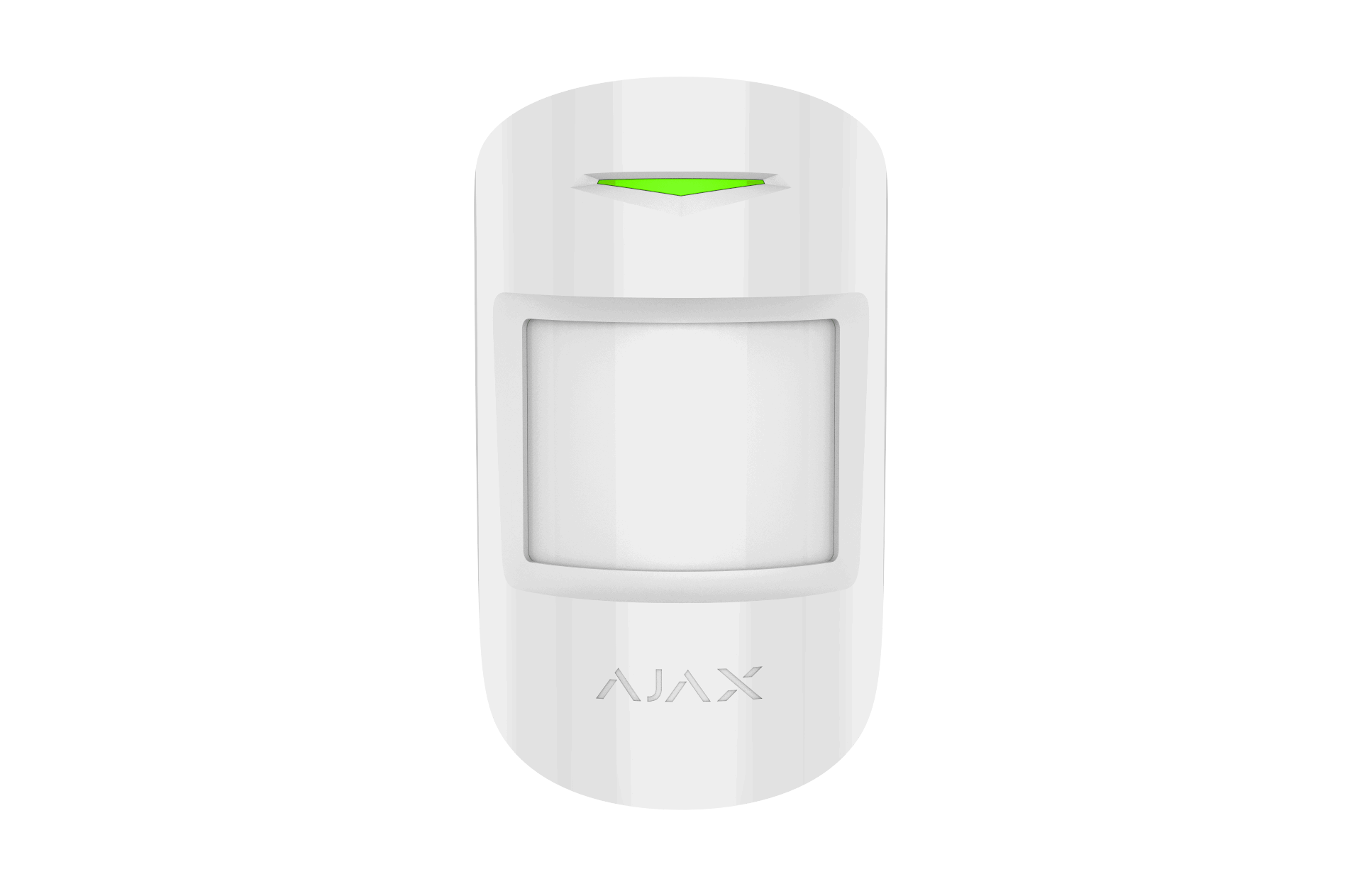

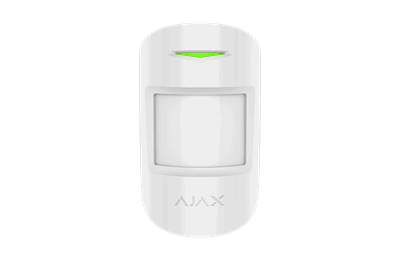

Wireless motion detector that notifies the owner of the first signs of home or office intrusion
The detector is fastened to the wall in front of the doors and other places likely of intruder entry
The device detects human presence by IR level using a passive IR sensor
The data received is digitally processed in order to prevent false alarms
The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector
With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes
Authentication to prevent forgery
Jamming detection and communication channels encryption
Tampering alarm
Tech specs
Classification - Electro-optical radio channel security detector
Type of detector - Wireless
Installation method - Indoors
Compatibility
Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element - PIR sensor
Alarm signal delivery time - 0.15 s
Motion detection distance - Up to 12 m
Detection angles
Horizontal — 88.5°
Vertical — 80°
Time for motion detection - From 0.3 to 2 m/s
Sensitivity - Adjustable, 3 levels
Recommended installation height - 2.4 m
Pet immunity
Weight — up to 20 kg
Height — up to 50 cm
Power supply
Battery: CR123A battery, 3 V
Battery life
Up to 5 years
Jeweller radio technology
Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s
Temperature sensor - Available
Operating temperature range - From -10°? to +40°?
Permissible humidity - Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Remote setting and testing - Available
Dimensions - 110 × 65 × 50 mm
Weight - 86 g
Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
Complete set
MotionProtect motion detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User's guide
Service life - 10 years
