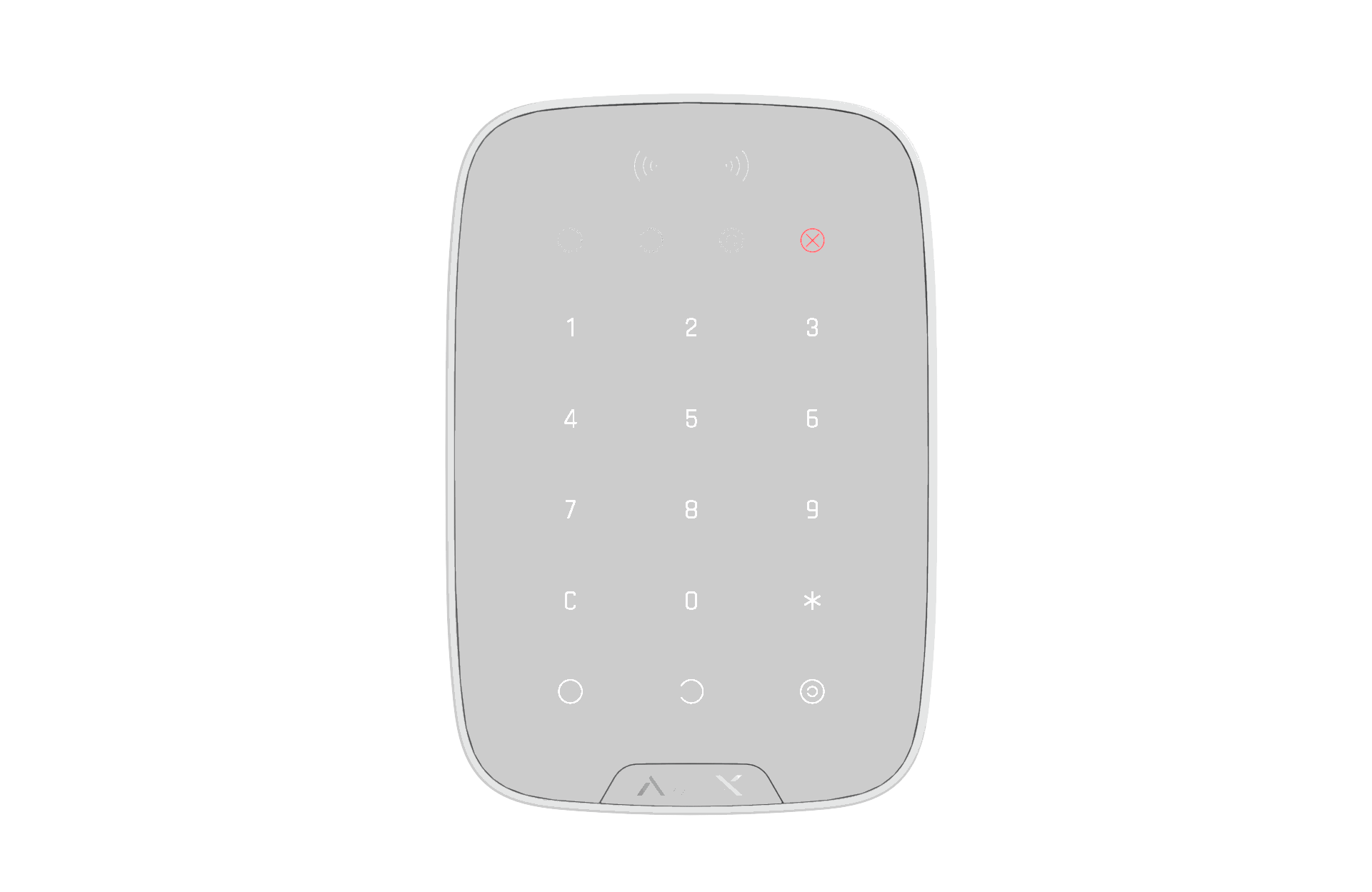

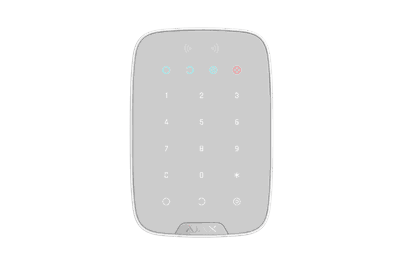

Wireless touch keypad supporting encrypted contactless cards and key fobs
KeyPad Plus is a combination of design, advanced encryption technology, and elaborated user experience
for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage
specific groups with a Pass card or Tag key fob
To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify a user by card or key fob.
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection
This technology is also used in transportation systems of European capitals and access systems at NASA
The all-new KeyPad Plus firmware gets the most out of the pre-installed batteries
Even with daily use of the contactless identification function, the keypad will work for 3.5 years without replacing batteries
And with the card and key fob reader disabled, the battery life reaches 4.5 years
KeyPad Plus will warn a monitoring station and users in advance about the need to replace the batteries
Tech specs
Keypad type - Capacitive touch keypad
Installation - Indoor only
Compatibility - Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
Personal passcodes - Yes
Passcode guessing protection - Yes
Duress code - Yes
Contactless access
DESFire® EV1, EV2
ISO14443-? (13,56MHz)
Power supply
Batteries: 4 lithium AA (FR6)
Voltage 1.5V
Battery life: up to 4.5 years
Temperature sensor - Available
Jeweller radio technology
Communication range with central unit — up to 1,700 m
Two-way communication between devices
Operating frequencies — 868.0–868.6 MHz5
Self-adjusting RF output power — up to 20 MW
Block encryption with a dynamic key
Ping period — 12–300 s
Anti-sabotage
Authentification
Jamming detection
Tamper notifications
Operating temperature range - From –10°C to +40°C
Operating humidity - Up to 75%
Dimensions - 165 × 113 × 20 mm
Weight - 267 g
Certification
EN 50131, complies with the requirements of the technical regulations for radio equipment
Warranty - 24 months
Complete set
KeyPad Plus
SmartBracket mounting panel
4 × ?? batteries (pre-installed)
Installation kit
User guide
